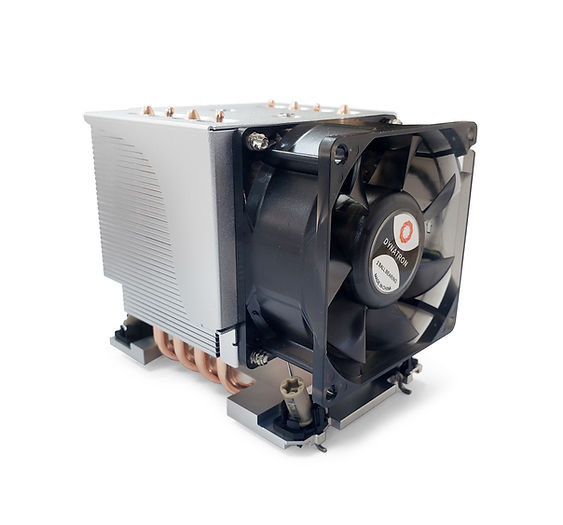

Dynatron S6 Aktivní 3U heatsink pro LGA4710 (575W)

CPU Support     Intel® Granite Rapids SP
CPU Socket     FCLGA 4710
Solution     3U Server and Up

Dimensions     128 x 91 x 110 mm
Weight     659.3 g

Material     Aluminum Stacked-Fin with Heat Pipes directly contact CPU

Fan Dimension     80 x 80 x 38 mm
Speed     At Duty Cycle 0~20%: 1300± 200 RPM
              At Duty Cycle 50%: 2450± 10% RPM
              At Duty Cycle 100%: 4500±10% RPM

Rated Voltage     12V
Bearing     Double Ball

Power     At Duty Cycle 0~20%: 1.20 W
              At Duty Cycle 50%: 2.64 W
              At Duty Cycle 100%: 9.00 W
Air Flow     At Duty Cycle 0~20%: 22.23 CFM
                At Duty Cycle 50%: 41.90 CFM
                At Duty Cycle 100%: 76.95 CFM
Noise Level     At Duty Cycle 0~20%: 23.95 dBA
                       At Duty Cycle 50%: 37.71 dBA
                       At Duty Cycle 100%: 50.91 dBA
Air Pressure      At Duty Cycle 0~20%: 1.068 mm-H2O
                        At Duty Cycle 50%: 3.794 mm-H2O
                        At Duty Cycle 100%: 12.798 mm-H2O

Lead Wire Pin Out Pin#1-Black(-), Pin#2- Yellow(+), ,Pin#3- Green(Tachometer/ Signal Output), Pin#4- Blue (PWM)

Thermal Grease     Shin-Etsu X23-8079-2

Life – Continuous operating under normal temperature (40 °C or 104 °F)     70,000 Hours
